INDUSTRIAL LUG TYRE

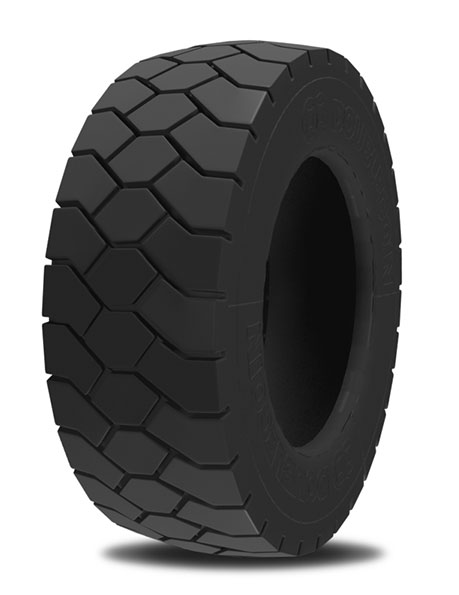

The Double Coin REM6 is an industrial tyre for lug, crane and port applications.
| Width | Inch | Load index | Speed index | max speed | overall diameter mm | Section width mm | Tread Depth | RIM | Weight | Single Max Load/Pressure |
|---|---|---|---|---|---|---|---|---|---|---|
| 5,00 | 8 | A5 | 468 | 25 | 137 | 24.5 | 3.00D | 1090 | 1000kg / 1,11 Bar | |
| 6,00 | 9 | A5 | 540 | 25 | 162 | 25 | 4.00E | 1450 | 1000kg / 1,21 Bar | |
| 6,50 | 10 | A5 | 585 | 25 | 180 | 27 | 5.0 | 1800 | 1000kg / 1,28 Bar | |
| 7,00 | 12 | A5 | 670 | 25 | 190 | 28 | 5.00S | 2240 | 1000kg / 1,36 Bar | |
| 7,00 | 15 | A5 | 736 | 25 | 195 | 28 | 5.5 | 2725 | 1000kg / 1,43 Bar | |
| 7,50 | 15 | A5 | 770 | 25 | 215 | 30 | 6.0 | 3000 | 1000kg / 1,46 Bar | |
| 8,25 | 15 | A5 | 838 | 25 | 232 | 32 | 6.5 | 3650 | 1000kg / 1,53 Bar | |
| 10,00 | 20 | A5 | 1062 | 25 | 294 | 35 | 7.5 | 5300 | 1000kg / 1,66 Bar | |
| 12,00 | 20 | A5 | 1136 | 25 | 320 | 41 | 8.5 | 7100 | 1000kg / 1,76 Bar | |
| 12,00 | 24 | A5 | 1232 | 25 | 322 | 39 | 8.5 | 7500 | 1000kg / 1,78 Bar | |
| 14,00 | 24 | A5 | 1416 | 25 | 390 | 64 | 10.0 | 11500 | 1000kg / 1,93 Bar | |
| 18,00 | 25 | A5 | 1656 | 25 | 522 | 63.5 | 13.00/2.5 | 17500 | 1000kg / 2,07 Bar | |
| 225/75 | 15 | A5 | 706 | 25 | 230 | 25 | 7.0 | 3250 | 1000kg / 1,49 Bar | |
| 250/70 | 15 | A5 | 736 | 25 | 252 | 26.5 | 7.0 | 3250 | 1000kg / 1,53 Bar | |
| 315/70 | 15 | A5 | 835 | 25 | 312 | 36 |
